• Floating Ball Valve
    Floating Ball Valve Floating Ball Valve
  • Trunnion Mounted Ball Valve
    Trunnion Mounted Ball Valve Trunnion Mounted Ball Valve

Ball Valves Video

Ball valves are used to cut off or connect the medium in the pipeline, as well as to regulate and control the fluid. As a professional manufacturer of customized valves, we can provide you with all kinds of floating and trunnion mounted ball valves.

Ball valves mainly feature compact structure and reliable sealing. The sealing surface and spherical surface are often closed, which means it’s not easy to be eroded by medium and easy to operate and maintain. We are good at making cast ball valve and forged ball valve with various special alloys, which are suitable for general working media such as water, solvent, acid and natural gas, as well as suitable for bad working conditions, such as oxygen, hydrogen peroxide, methane and ethylene.

  • Design Features
    • Soft seat or metal seat
    • Full bore or reduced bore
    • Fire-safe and anti-static device
    • Double block and bleed function
    • Stem and valve seat grease injection system
    • Blowout-proof stem
    • Self cavity pressure relief
    • Gland locking device
    • Packing and packing box with leak off
    • ISO 5211 mounting pad
  • Parameter

    Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
    Pressure rating: CLASS 150LB~2500LB, 1.0MPa~42.0MPa, JIS 10K~40K
    Size range: NPS3/8” ~48”, DN8~DN1200
    Standard connections: flange, wafer, threaded, butt weld, socket weld
    Operation: handle, gear, pneumatic actuator, hydraulic actuator, electric actuator

Samples

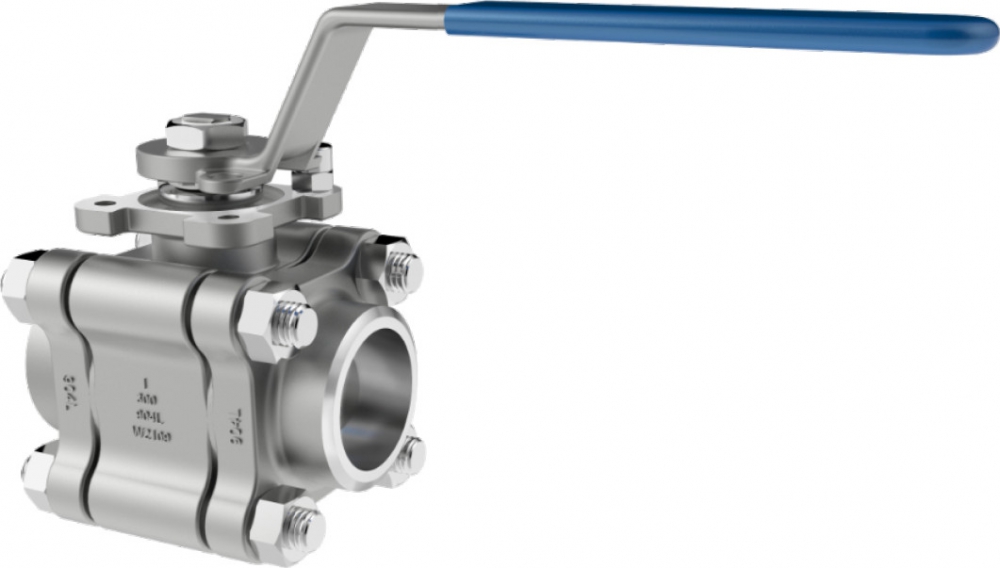

    1. samples

    2. Pressure: 300LB
      Size: 1”
      Material: 904L
      Standard connection: BW
      Applications: seawater, chemical industry

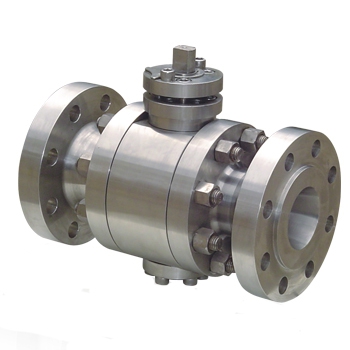

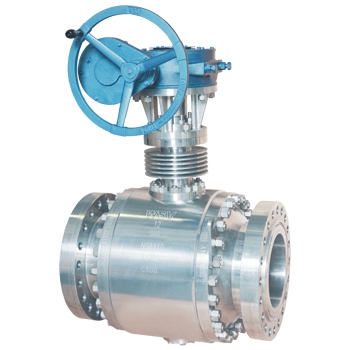

    1. samples

    2. Pressure: 600LB
      Size: 12”
      Material: Incoloy 800H
      Standard connection: Flange RF
      Applications: Polycrystalline silicon

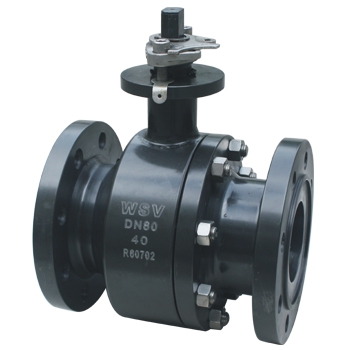

    1. samples

    2. Pressure: PN40
      Size: DN80
      Material: Zirconium 702
      Standard connection: Flange RF
      Applications: acetic acid

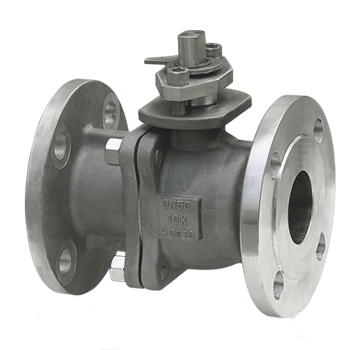

    1. samples

    2. Pressure: JIS 10K
      Size: DN50
      Material: Hastelloy C276
      Standard connection: Flange RF
      Applications: oxidizing acid, anhydrous acetic acid, seawater, fluoride device

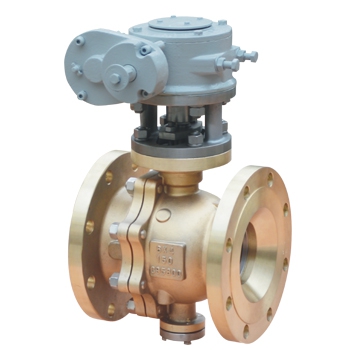

    1. samples

    2. Pressure:150LB
      Size: 6”x4"x6”
      Material: NAB C95800
      Standard connection: Flange RF
      Applications: seawater

    1. samples

    2. Pressure: 300LB
      Size: 1”
      Material: Duplex stainless steel 2205
      Standard connection: Flange RF
      Applications: seawater, chemical industry, paper
