Strainers

As an indispensable pert, strainers are usually installed at the pipe head of reducing valve, air relief valve and other equipment. Valve strainer employs the filter cartridge to block impurities. When cleaning is required, detachable filter cartridges are removed and re-loaded after treatment, being very convenient to use and maintain.

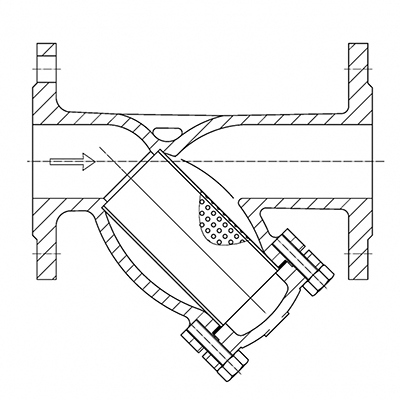

  • Y-Type Strainer
    Y-Type Strainer Y-Type Strainer

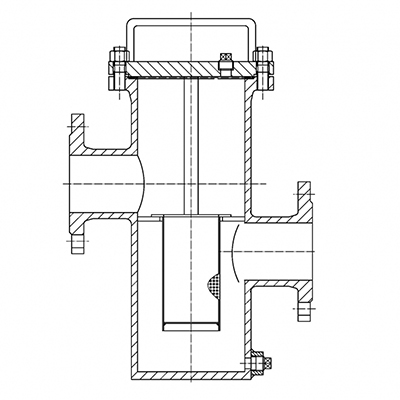

  • Basket Strainer
    Basket Strainer Basket Strainer
  • Design Features
    • High strength, high accuracy and corrosion resistance.
    • Easy clean, ensuring the filtering efficiency and long service life.
    • Low maintenance costs as well as simple operation and management.
  • Specification

    Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
    Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K
    Size range: NPS1/2” ~20”, DN15~DN500
    Standard connections: flange, threaded, butt weld, socket weld

Samples

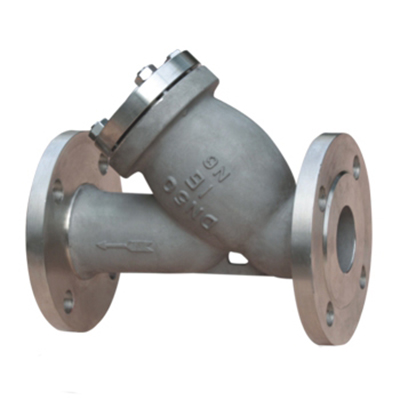

    1. samples

    2. Nickel N6 Y-Type Strainer
      Pressure: PN16
      Size: DN50
      Material: Nickel N6
      Standard connection: Flange RF
      Applications: Caustic soda

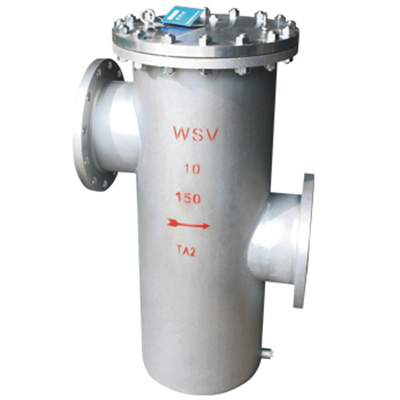

    1. samples

    2. Titanium Basket Strainer
      Pressure: 150LB
      Size: 10”
      Material: Titanium Gr.2
      Standard connection: Flange RF
      Applications: Formic acid

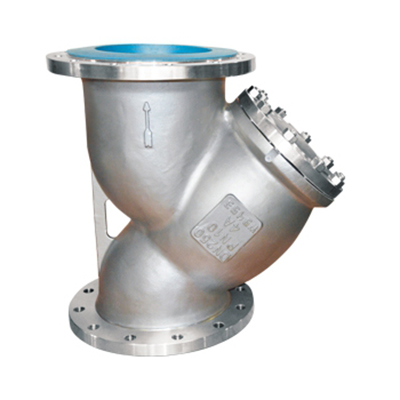

    1. samples

    2. Y Strainer
      Pressure: PN10
      Size: DN200
      Material: Duplex steel 2205
      Standard connection: Flange RF
      Applications: Chloromethane

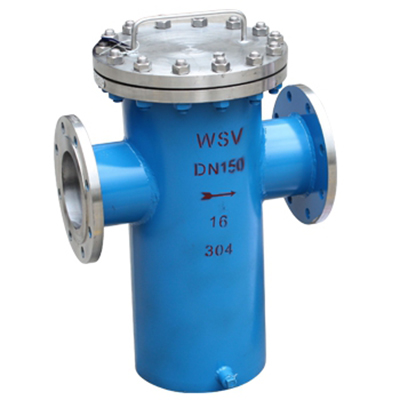

    1. samples

    2. SS304 Basket Strainer
      Pressure: PN16
      Size: DN150
      Material: SS304
      Standard connection: Flange RF
      Applications: pesticide and fertilizer industry
