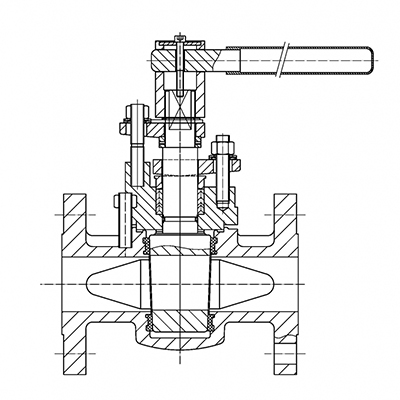

• Double gland structure plug valve
    Double gland structure plug valve Double gland structure plug valve

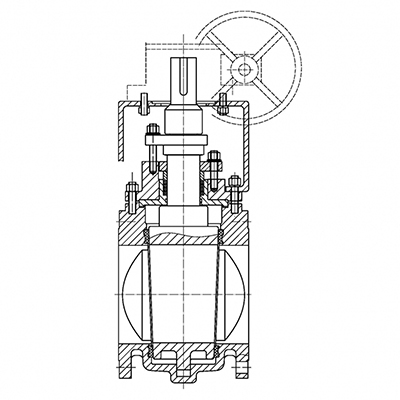

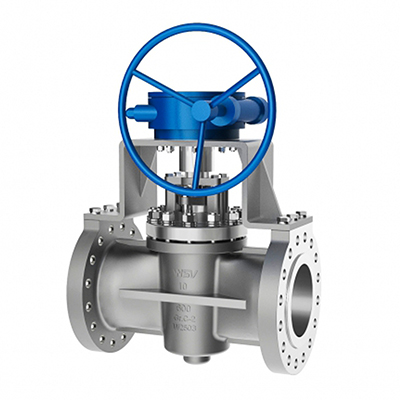

  • Fixed double gland structure plug valve
    Fixed double gland structure plug valve Fixed double gland structure plug valve

Plug Valves Video

The plug valve employs the plug with through hole as the opening and closing part, realizing opening and closing by the rotation between the plug and the valve.

Our company has developed a new type of plug valve for severe corrosion, high temperature, high pressure and other harsh conditions. The new plug valve employs trunnion double gland structure, being able to fit the harsh working conditions in petroleum, chemical and smelting industries, ensure long-term safe and stable operation of process pipeline equipment, and avoid the internal and external leakage of traditional plug valves in pipelines.

  • Features
    • Full bore or reduced bore
    • Trunnion structure
    • Double gland structure
    • Fire-safe and anti-static device
    • Packing box structure
    • Self-adjusting corrosion and erosion resistance structure
  • Specification

    Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
    Pressure rating: CLASS 150LB~600LB, 1.0MPa~11.0MPa, JIS 10K~40K
    Size range: NPS1/2” ~24”, DN15~DN600
    Standard connections: flange, threaded, butt weld, socket weld
    Operation: handle, gear, pneumatic actuator, electric actuator

Samples

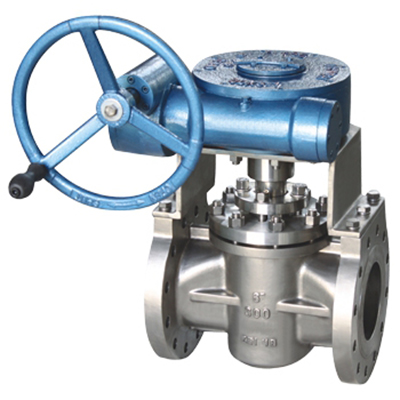

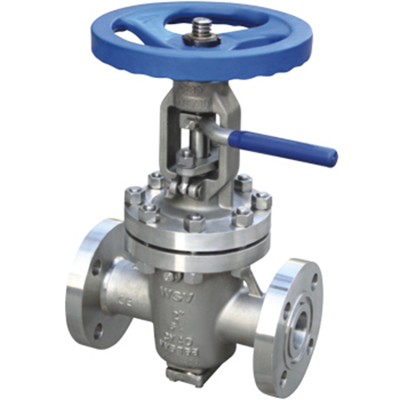

    1. samples

    2. Pressure: 600LB
      Size: 2”
      Material: CW6M
      Standard connection: Flange RF
      Applications: acetic acid

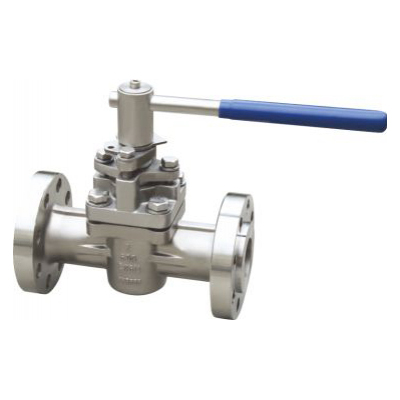

    1. samples

    2. Pressure: 150LB
      Size: 3”
      Material: zirconium 702
      Standard connection: Flange RF
      Applications: acetic acid

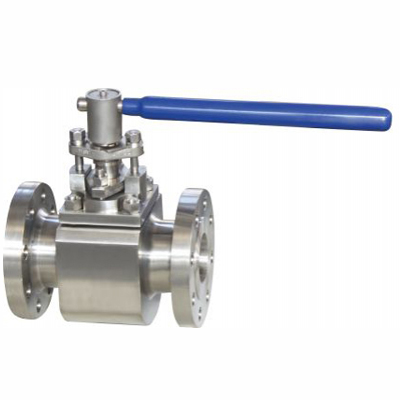

    1. samples

    2. Pressure: 300LB
      Size: 6”
      Material: 904L
      Standard connection: Flange RF
      Applications: phosphoric acid and sulfuric acid transportation

    1. samples

    2. Pressure: PN64
      Size: DN50
      Material: CY40
      Standard connection: Flange RF
      Applications: caustic soda transportation

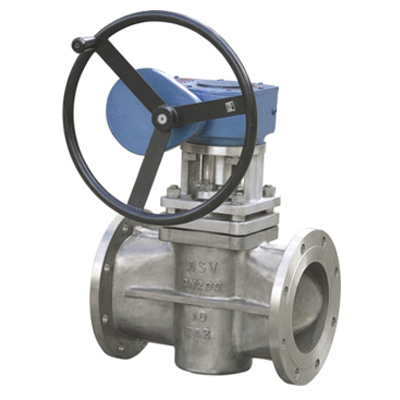

    1. samples

    2. Pressure: PN10
      Size: DN200
      Material: Titanium Gr.2
      Standard connection: Flange RF
      Applications: soda ash, metallurgy

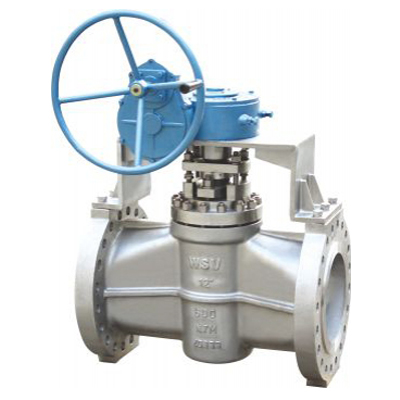

    1. samples

    2. Pressure: 600LB
      Size: 12”
      Material: N7M
      Standard connection: Flange RF
      Applications: acetic acid transportation
