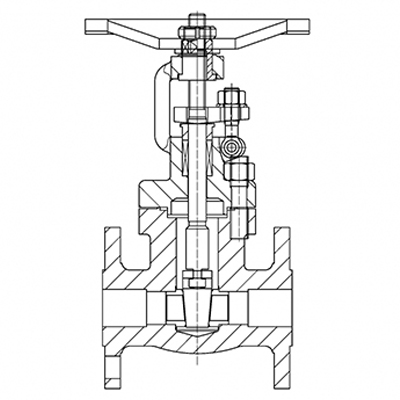

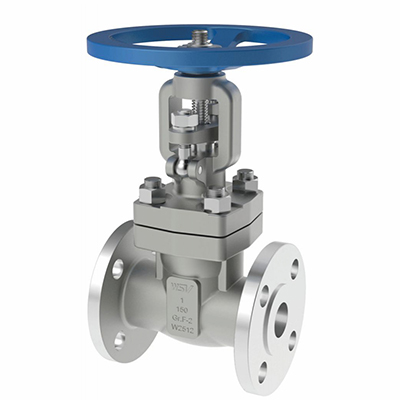

• Full Port Gate Valve
    Full Port Gate Valve Full Port Gate Valve

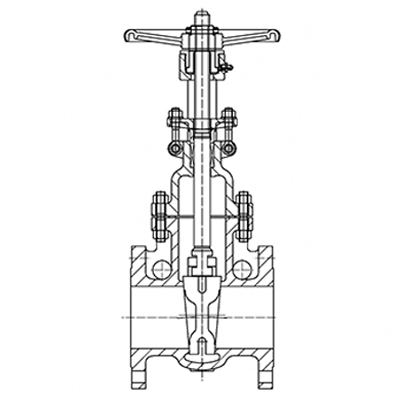

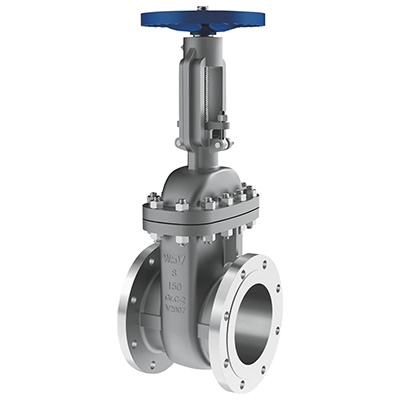

  • Standard Port Gate Valve
    Standard Port Gate Valve Standard Port Gate Valve

Gate Valves

Gate valves are used to cut off or connect media transmission, and are suitable for pipeline systems in petroleum, chemical, thermal power plants and other industrial fields. Gate valves can only be fully opened and fully closed in the pipeline, which means it cannot be used for regulation and throttling.

Customization

Weidouli provides you with a variety of industrial gate valves, including cast and forged ones, which can be made of various high alloy materials according to your requirements.

  • Design Features
    • Flexible or solid wedge
    • Full bore or reduced bore
    • Replaceable seat or integral seat
    • Bolted bonnet or pressure seal bonnet
  • Specification

    Design standard: API, ASME, EN, ISO, JIS, DIN, BS, GB
    Pressure rating: CLASS 150LB~2500LB, 1.0MPa~42.0MPa, JIS 10K~40K
    Size range: NPS1/2” ~60”, DN15~DN1500
    Standard connections: flange, threaded, butt weld, socket weld
    Operation: handle, gear,pneumatic actuator, hydraulic actuator, electric actuator

Samples

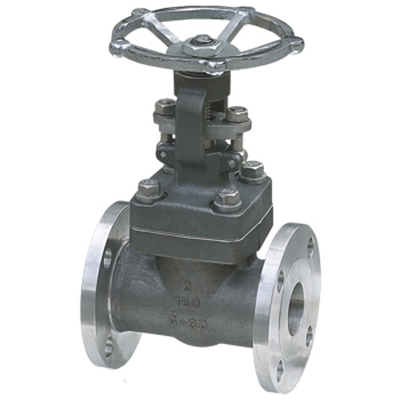

    1. samples

    2. Pressure: 150LB
      Size: 2”
      Material: Hastelloy G-30
      Standard connection: Flange RF
      Applications: cyclohexanone transportation

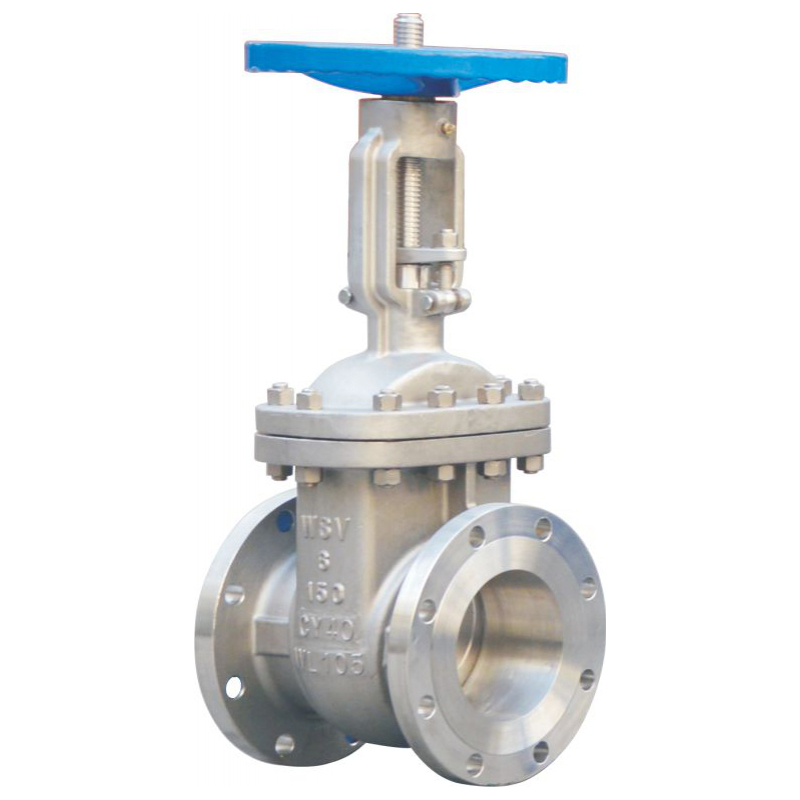

    1. samples

    2. Pressure: 150LB
      Size: 6”
      Material: Inconel CY40
      Standard connection: Flange RF
      Applications: propane dehydrogenation device

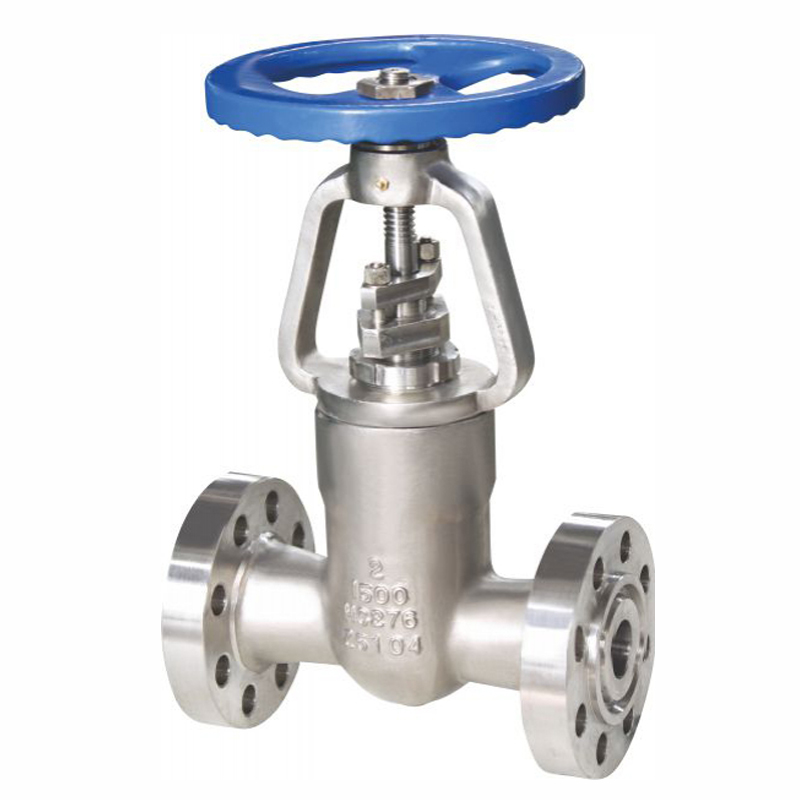

    1. samples

    2. Pressure: 1500LB
      Size: 2”
      Material: Hastelloy C276
      Standard connection: Flange RTJ
      Applications: cyclohexanone transportation

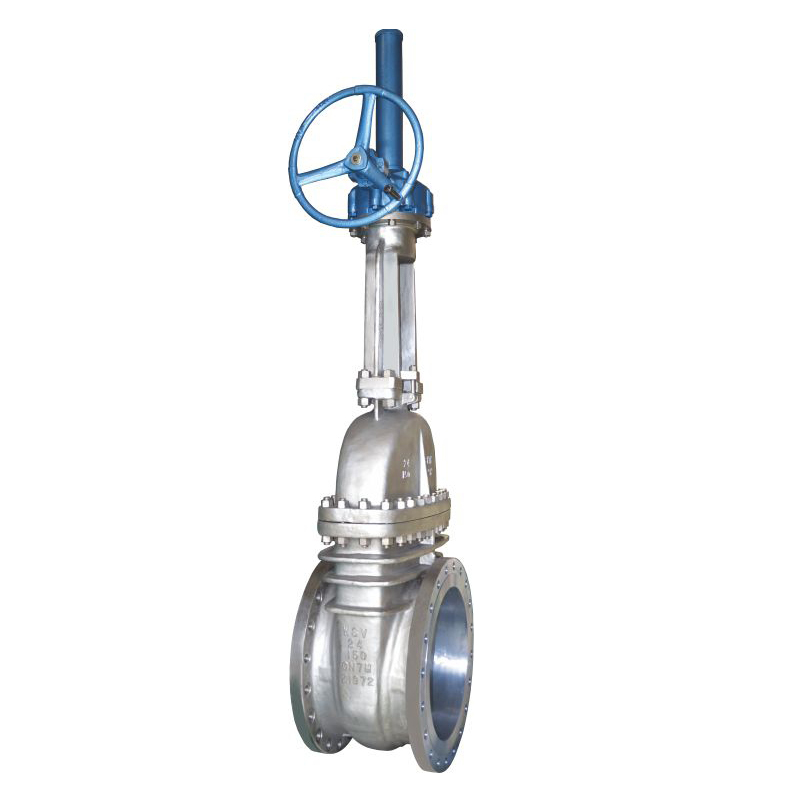

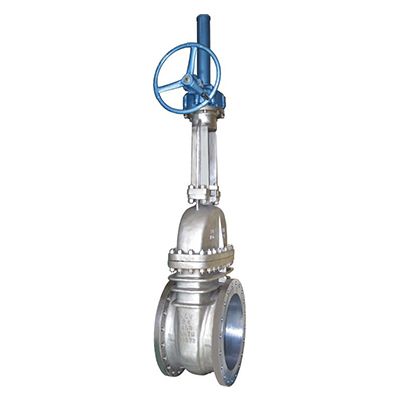

    1. samples

    2. Pressure: 150LB
      Size: 24”
      Material: Alloy 20 CN7M
      Standard connection: Flange RF
      Applications: sulfuric acid transportation

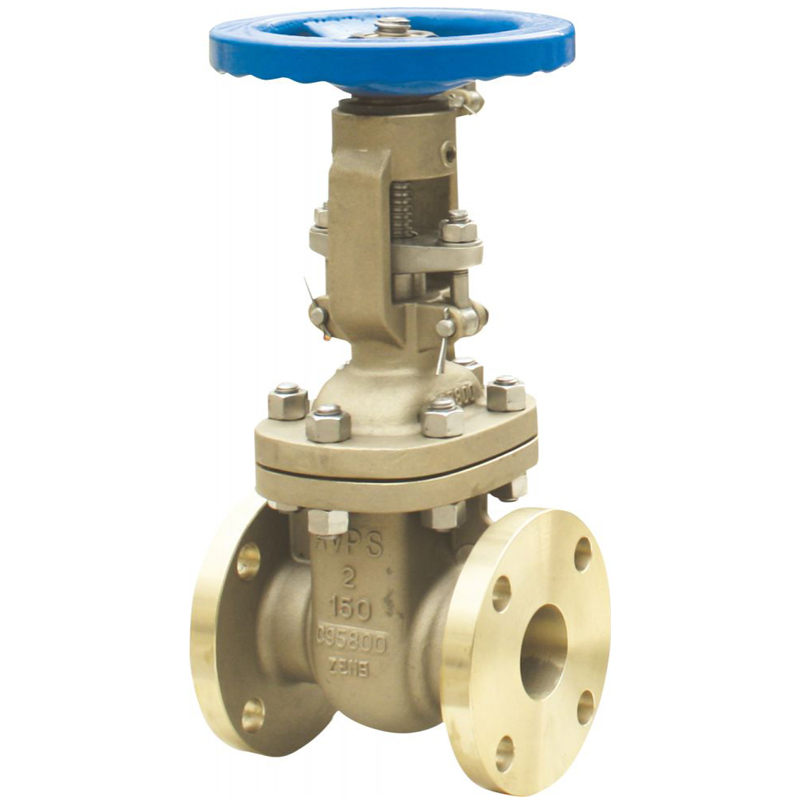

    1. samples

    2. Pressure: 150LB
      Size: 2”
      Material: nickel-aluminum bronze C95800
      Standard connection: Flange RF
      Applications: seawater desalination

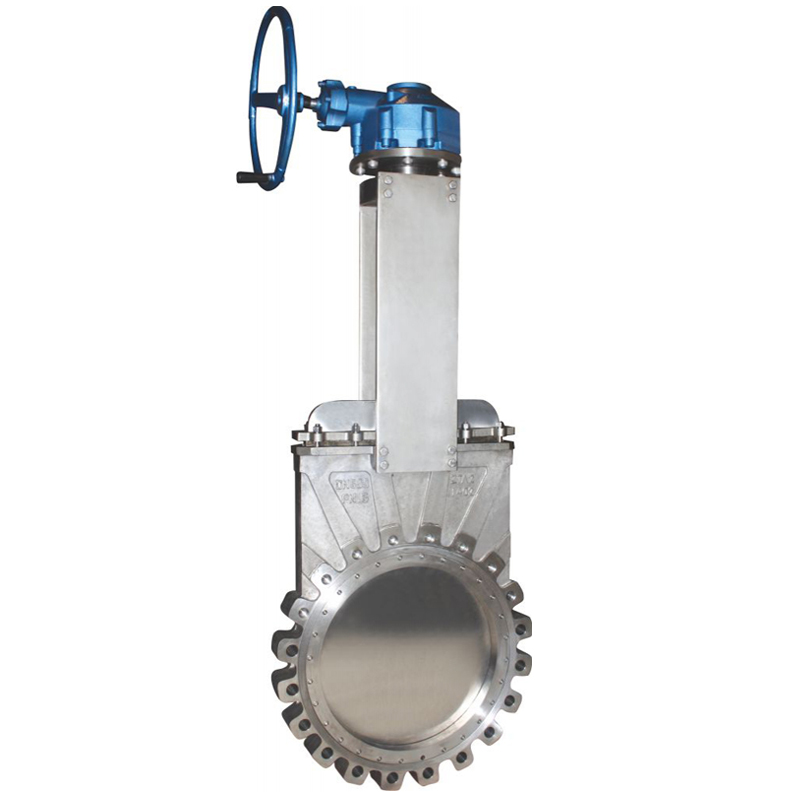

    1. samples

    2. Pressure: PN16
      Size: DN600
      Material: Titanium Gr.2
      Standard connection: Lug
      Applications: papermaking
